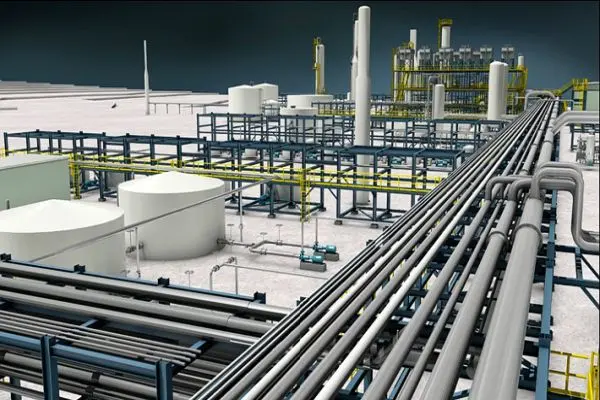

LNG Plant

LNG Plant

UPDATES
  • The 17th Nigeria Oil & Gas Con...
    Name of the Exhibition: The 17th Nigeria Oil & Gas Exhibition & Conference Date: July 2nd – 5th, 2018Location: Abuja International Conference Centre, Nigeria Booth Number: E104The 17th Nigeri...
  • PCC In the 32rd ACHEMA Interna...
    In June 2018, PCC was invited to the 32rd ACHEMA International Meeting on Chemical Engineering, Environmental Protection and Biotechnology. As one of the biggest and most influential chemical engineer...
  • OTC 2018 Exhibition
    OTC 2018 was a fruitful exhibition for PCC after four days busy and deep discussion with clients.PCC's team were discussing with clients.If you are interested in PCC and need more information, please ...
  • China Import More Natural Gas ...
    To meet the demands of heating and industry, Chinese imports of liquefied natural gas (LNG) from the US surged to record levels last month.China imported 407,325 tons of LNG from the U.S. in November,...
Contact
  • Tel:+234-8060719251(Nigerian Office)
  • E-mail:sales@peiyangchem.com
  • Add:15F, 269 Anshanxi Rd, Nankai District, Tianjin, China 300192

Process of LNG Plant

After compression, the feed gas is processed by dehydration and heavy hydrocarbon separation units. Please see the attached PFD. Process description is detailed as follows:
  • Feed gas compress unit
After measuring, the feed gas flows into the compress unit, and boosts the pressure to 2.4Mpag, pressurized gas flows into the dehydration unit.
  • HDU: Dehydration Unit

Remove H2O in the feed gas, output dry gas and control dew point lower than -80℃.

Dehydration Unit
After gas sweetening unit (GSU), next process is dehydration unit (DHU). DHU is used to meet water content in the specification, and it can reduce water to 1ppm. The technology adopted is temperature swing adsorption (TSA).

  • LQU: Liquefaction Unit

Liquefaction technology is based on refrigeration cycles, which takes hot and pretreated feed gas, cools and condenses it to cryogenic temperature into liquid product. Refrigerant is a part of natural gas, R22 and ethylene fluid being continuously recirculated.




3D Model of DHU

DHU: Dehydration Unit
