OVERVIEW

Air cooled heat ex-changer (also called air cooler) is a kind of heat exchange equipment which uses ambient air as cooling medium and forced air to sweep over the finned cooling tube bundle with fan (forced draft or induced draft) to cool or condense the high temperature process fluid in the tube.

Air cooled heat exchanger is usually composed of 3 basic parts with finned tube bundle, fan and frame, and auxiliary parts such as shutters (diversion), maintenance platform and ladder.

PCC can provide overall design and calculation optimization for customers, and make finned tubes of various materials to meet the requirements of different working conditions. We can design and manufacture according to GB code and ASME code with U stamp.

Application of Air cooled heat ex-changer

Air cooled heat ex-changer has been widely used in petroleum, chemical industry, thermal power plant, poly-silicon, PVC, metallurgy, cement production line, waste incineration power plant and other fields. It will has wide applicable fields of the new material compounding and manufacturing in the future.

Advantage of Air cooled heat ex-changer

Compared with water cooled heat ex-changer , the air cooled heat ex-changer uses the national gas as the cooling medium, which can save the water resources, reduce the discharge of industrial sewage, and then protect the water resource environment better.

Type of air cooled heat ex-changer

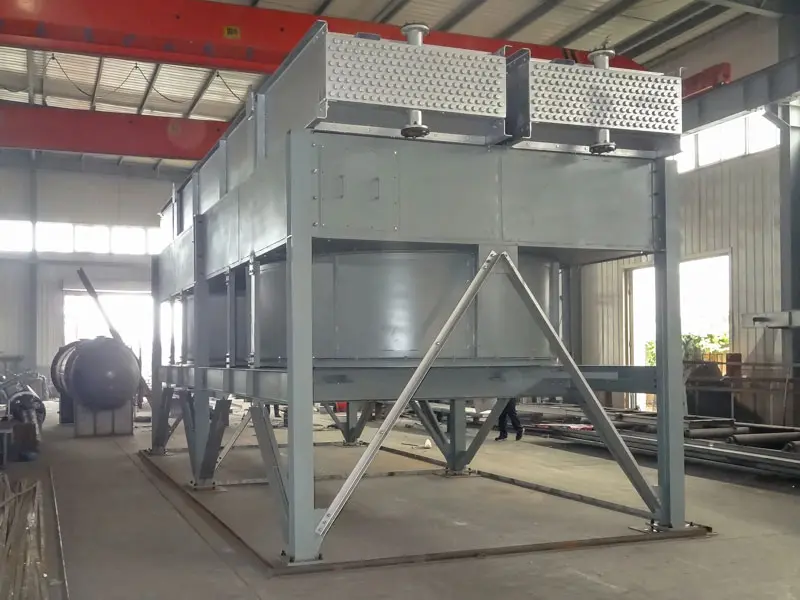

Horizontal air cooled heat ex-changer

Horizontal air cooled heat ex-changer

Inclined head-space air cooled heat ex-changer

Inclined head-space air cooled heat ex-changer

Vertical air cooled heat ex-changer

Vertical air cooled heat ex-changer

Forced draft air cooled heat ex-changer

Forced draft air cooled heat ex-changer

Induced draft air cooled heat ex-changer

Induced draft air cooled heat ex-changer

High-efficiency finned tubes for heat exchange

High-efficiency finned tubes for heat exchange



Common Material of Air cooled heat ex-changer

1. Carbon Steel: Q245R, Q345R
2. Low alloy steel: 15CrMoR, 14Cr1MoR, etc.
3. Stainless Steel: 304,304L,316,316L
4. Duplex Stainless Steel: S22053
5. Nickel base alloy steel   UNS N08825
6. Titanium
7. Copper

Common Package of Air cooled heat ex-changer

Export with nude packing
packaging
packaging
packaging
